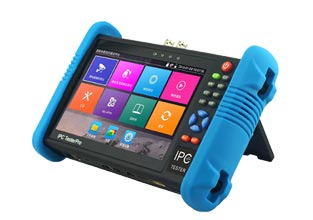

Multi-functions CCTV tester
◆ 7 inch IPS touch screen,1280*800 resolution
◆8MP TVI, 8MP CVI, 8MP AHDtest
◆H.265/H.264, 4K video display via mainstream
◆Dual window test, IP &Analog camera test
◆ Built in WIFI, create WIFI hotspot
◆ HDMI input, 1080p
◆ IP discovery , shortcut button, drop-down menu
◆DC12V 2A, DC48V PoE power output
◆Rapid ONVIF, auto view video and create testing report
◆Quick office(excel ,word ,PPT format ) doc.
◆RJ45 cable TDR test, cable quality test
◆UTP cable tester
◆TesterPlay：Tester, android version mobile phone, PC display at the same time

—CCTV system installation and maintenance
—Network cabling project installation and maintenance
—Dome camera, IP TVI CVI AHD 4K H.265 camera testing
—Video transmission channel testing
—PTZ controller
1.New -7 inch IPS touch screen,1280*800 resolution
2.New- H.264 and H .265 ,4K video display via mainstream
3.New-8MP TVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4.8MP AHD test,2592 x 1944P 12.5/20FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
5.8MP CVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
6.IP & CVBS camera test, PTZ controller
7.New- Rapid video, just by one key to detect all network cameras and auto display
8.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
9.New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
10.New- Screen management, change function’s icons order, create new directory
11.New- Testerplay (screen projection):tester, android version mobile phone and PC display at the same time
12.New- Shortcut button, drop-down menu, can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface
13.New- RJ45 cable TDR test, testcable pair status, length, attenuation, reflectivity, impedance, skew etc
14.New- Screen lock, password lock and pattern lock are optional
15.New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
