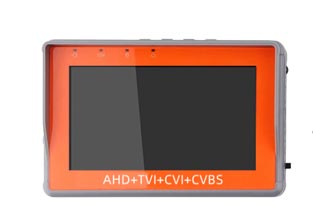

Model: AR-CT601
Video System: NTSC/PAL Automatically recognize
Video level : 1VPP
Display screen: 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
Screen adjustment: Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable
Video input / output:  1 channel BNC Video IN
Test Signal: SD signal Format NTSC ,PAL
HD video signal: HD AHD CVBS CVI TVI
Analog Camera Resolution:1080P/1440P/3MP/4MP/5MP/8MP
Signal Level: 1Vpp
Power output: 12V power output
Power input: Temporary power input 5V 1A DC/ USBX1  5V1A input
Audio test: Input audio signal, and played on the internal speaker
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge: Charge time 3-4 hours Battery power time 8 hours
Power saving features: Low power consumption, automatic power off, Real-time display of battery level
Language settings: Chinese, English user selectable
Auto power off: Disable / 5-60 minutes
cable test: Test any two or more wire cable Display connect sequence and remote number
LED Light:1*35lm LED light
Working environment and Specifications: -10---+40  /30%-90%Rh
