Video/audio input

Network video input

4ch

Video output

Video output

Plug  to home wifi Router

preview

APP，CMS

Video compression

Standard H.264

video encoding

Recording resolution

720P/960P/1080P

playback

1ch (APP)

video manage

recording

Motion detection recording，auto recording overwriting

back up

Use  card reader to play on PC，make back on APP when viewing playback

storage

type

1 MicroSD port

max

128G

external port

Ethernet port

1 J45 10M/100M self adaptive Ethernet port

2  antenna

button port

2 buttons , one for pairing，1 for reset

Indicator light

P2P LED

one P2P LED

Channel Indicator LED

4 CHANNEL LED

others

POWER SUPPLY

USB DC 5V 1A

WORK TEMPERATURE

-10℃--＋55℃

WORK HUMIDITY

10％--90％

SIZE

80x80x27mm

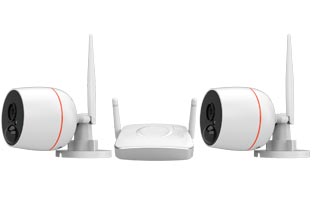

WIRELESS BULLET     PO1020-W

SENSOR

SENSOR

1/3" CMOS SENSOR

RESOLUTION

1080P

Minimum Illumination

0Lux (with infrared led)

NIGHT VISION

NIGHT

9 METER

DAY

AUTO SWITCH IR-CUT

Video

Compression

H.264

resolution

1920 x 1080P,640 x 480P

Audio

input/output

Insert mic and speaker(two way audio)

Audio

AAC

Network

WIFI

802.11b/g/n;

WIFI SAFETY CLASSIFIED

WEP, WPA, WPA2

INDICATOR LED

CABLE LED

GREEN

RESET BUTTON

For re-code matching

PIR

included

PIR MOTION DETECTION

Storage

Micro SD card

MAX 128GB

Physical feature

WORK TEMPERATURE

–20°C～50°C

WORK HUMIDITY

20%～85%;uncondensed

STORAGE TEMPERATURE

–20°C～50°C

STORAGE HUMIDITY

20%～85%;  uncondensed
