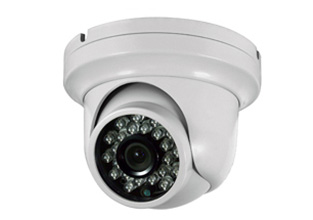

Model No.

AS-IP2208M

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

0.01Lux @(F1.2,AGC ON),0Lux with IR

Shutter

Manual /Auto (Adjustable, 1/25~1/100000)

Lens Type

3.6mm, M12 mount (2.8mm,.6mm,8mmoptional)

Day & Night

Auto (ICR) / Color / Black & White

Compression Standard

Video Compression Standard

H.264

Compression Output Bit rate

128Kbps~8Mbps

Audio Compression Standard

PCMV/PCMA

Audio output Bit rate

64Kbps(G.711) /16Kpbs(G.726)

Max. Resolution

Mainstream: 1280×1024, Sub-stream : 720×576


Frame Rate

50Hz: 25fps(1280×1024), 60Hz: 30fps(1280×1024)

Image Setup

Mirror Image, Reverse, Brightness, Contrast, etc. can be settable on IE browser

Alarm

Motion Detection Alarm

Network Function

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6

Interface Protocol.

ONVIF

General Function

Flicker Filter, Dual-stream, Mirror Image

Port

Communication Interface

RJ45 (10M/100MEthernet), Audio Input /Output optional

Application

Working Temperature

-10℃~50℃

Power Supply

DC12V±10%

IR Distance

20m (it differs for Lens type & installation environment also )
