IP & NVR System
IP & NVR System
|
|
Model |

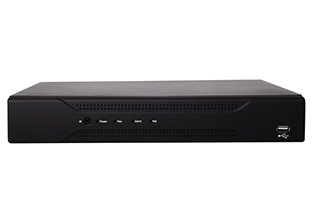

AS-NVR2008H |
|
System |
CPU |
Hi3520D |
|
OS |
Embedded Linux |
|
|
System resources |
Sync multi-channel real-time recording, multi-channel real-time playback, multiple users remote operation |
|
|
UI |
Operation UI |
16-bit true color graphical menu operation interface, support mouse operation |
|
Channel Display |
1/4/9ch screen |
|
|
Video |
Video Standard |
PAL/NTSC |
|
Encode Compression |
H.264 |
|
|
Output Resolution |
1024*768/1280*720/1280*1024/1920*1080 |
|
|
Playback Resolution |
1080P/1024P/960P/720P/VGA/D1/QVGA/CIF/QCIF |
|
|
Video Input |
8ch 1080P |
|
|
Motion Detection |
Support |
|
|
Record |
Record Type |
Time record/Motion record/Alarm record |
|
Record Inquery |
By time/date/event/channel |
|
|
Local Playback |
2ch 1080P |
|
|
Record On |
Local HDD, USB disk |
|
|
Backup |
Network/USB disk |
|
|
Interface |
Video Output |
1 VGA,1 HDMI |
|
RS485 |
1 |
|
|
Network |
1*RJ45 10/100M interface for LAN connection |
|
|
4*RJ45 10/100M interface for 4 IP cameras auto-connection and POE power supply |
||
|
USB |
2 USB |
|
|
HDD |
2 SATA（Maximum support 4TB HDD） |
|
|
Power |
DC12V for NVR board, DC48V for 4 POE ports |
