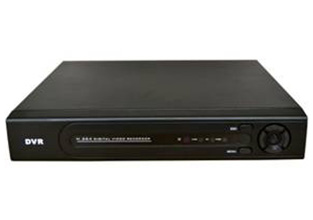

Model

AS-AVR6208H

System

Processor

Huawei Hisilicon 3520D

Video

Picture Coding

H.264(High Profile)

Encode Capacity

8*AHD-M

Decode Capacity

1*AHD-M

Multi-mode Input

Pure Analog: 8*AHD-M; 4*AHD-M;4*AHD-L;

Mixed: 4*AHD-M(Analog)+4*720P(Network);

Pure Network：2*1080P+2*720P; 8*720p

Audio

Audio Compression

G.711A

Intercom

Support

Record & Playback

Record Mode

Manual>alarm>motion detection>timing

Playback Channels

4 (1-ch real-time)

Storage & Backup

Space Occupation

960H:12~20G/ day*channel; 720P:20G~30G/ day*channel;

Audio:691.2M/ day*channel

Backup Mode

Network backup, USB HDD, USB writer, SATA writer

Interface

Video Input

8-ch BNC

video Output

1-ch VGA, 1-ch HDMI

Audio Input

4-ch RCA

Audio Output

1-ch RCA

Alarm Input

No

Alarm Output

No

Net Interface

1 RJ4510M/100Madaptive Ethernet Interface

Control Interface

1 RS485, support multiple PTZ protocols

USB Interface

2 USB Interfaces

Hard Disk Interface

1 SATA Interface (Max 4TB)

Wireless Interface

WIFI/3G

General

Power Supply

12V/2A

Dimension

255mm*225mm*45mm
