Operation System

Embedded Linux Operation System

Operation Interface

GUI, support mouse, pane, remote control operation

Video Standard

PAL, NTSC

System Resources

Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation.

Video Compression

H.264

Audio Compression

G.711A

Recording Mode

Manual, Timing, Alarm, Motion detection

Search Mode

By time, event, channel, log

Backup Mode

Network download, USB backup

Video Input

4ch BNC

Video Output

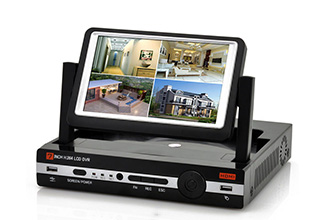

LCD:7 inch (Resolution:800X480

Audio Input

4ch RCA

Audio Output

1ch RCA

Voice Talkback

1ch RCA

Live Video Resolution

PAL：720x576（D1 ）；NTSC：720x480（D1）

Playback Resolution

Relate on record resolution

Image Control

selectable

Remove Detection

Each channel can set independent detection zones and multilevel sensitivity

Video Display

1/4 multiple display

Record resolution

4CH  D1

Recording Frame Rate

PAL：25f/s(Adjustable) NTSC：30f/s(Adjustable)

Recording Storage

Local  HDD, Network

Local Playback

Select any 4 channel playback at same time

Alarm Input

4ch

Alarm Output

1ch output

PTZ Control

RS485

HD Interface

1 SATA Ports

Network Interface

RJ45 10M/100MAdaptable Ethernet Connection

Mobile Phone View

Support  iPhone, blackberry, Windows Mobile, Android, Symbian

USB Interface

2 USB2.0 High-speed Port

Power Supply

12V4A
