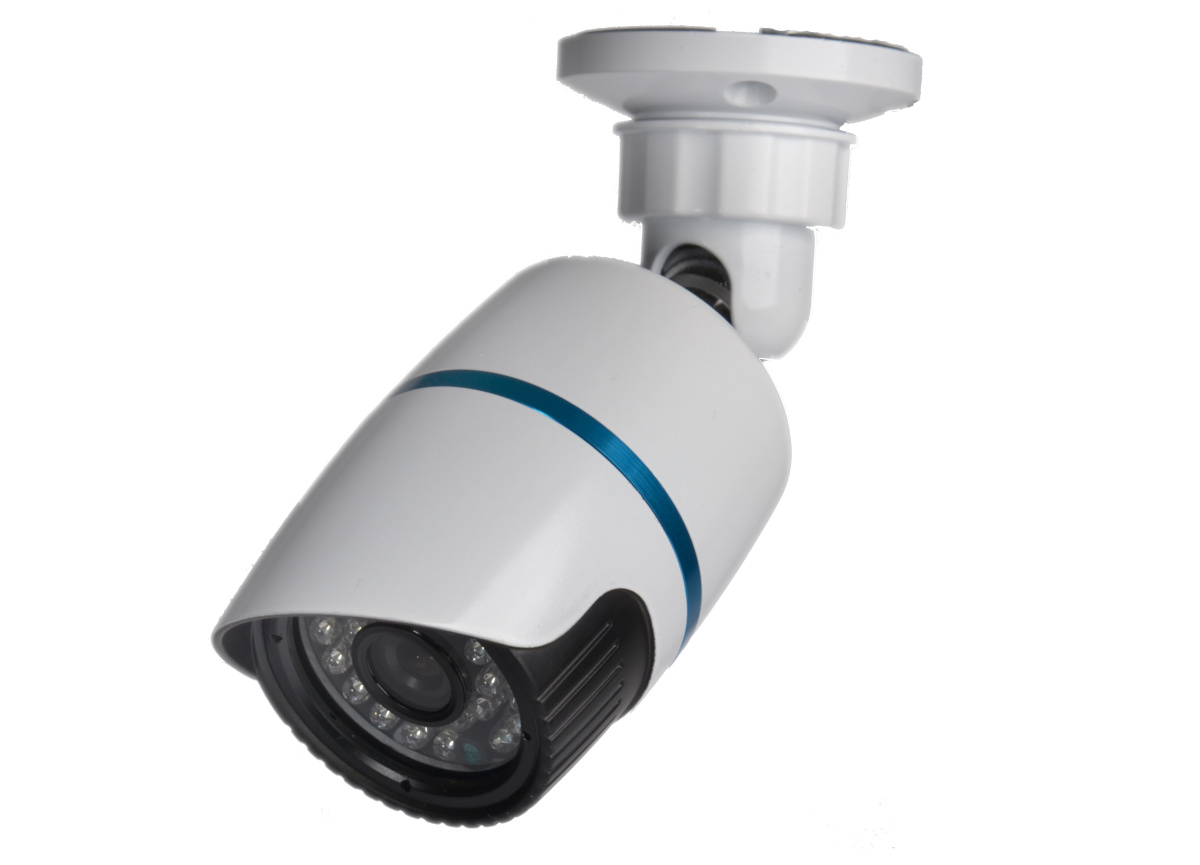

Bullet Camera
Bullet Camera
|
Sensor |
1/3" SONY 238 CMOS Sensor /With IR-CUT |
|
|
DSP |
NVP2431H |
|
|
Active Pixel |
1280*960 |
|
|
SYNC. |
Internal |
|
|
Resolution |
1.3MP/960P |
|
|
VIDEO.OUT |
AHD/CVBS |
|
|
Minimum Illumination |
0.01Lux(F1.2), 0 Lux with IR |
|
|
Gama adjust |
0.45 |
|
|
Lens Mode |
Board Lens 3.6mm |
|
|
IR Distance |
20M |
|
|
Electric Shutter |
1/50s-1/50000s |
1/60s-1/50000s |
|
S/N Ratio |
50dB(min)(AGC closed) |
|
|
3D-NR |
OFF/LOW/MID/HIGH |
|
|
2D-NR |
OFF/LOW/MID/HIGH |
|
|
WHITE Balance |
ATW/AWC-SET/Indoor/Outdoor/MANUAL |
|
|
AGC |
Level 0-15 |
|
|
BLC |
BLC/HLC/OFF |
|
|
D-WDR |
OFF/ON(Level 0-8)/Auto |
|
|
OSD |
Optional |
|
|
Language |
11 kinds(Traditional Simplified English Spanish Portuguese Russian German French TUR NEL ITA) |
|
|
Motion Detection |
4 areas optional |
|
|
Day/Night |
Auto,Color,B/W,Ext |
|
|
Privacy Zone |
4 areas optional |
|
|
Defog |
OFF/AUTO |
|
|
Power Input |
12VDC±10﹪ |
|
|
Power Dissipation |
70mA |
|
|
Operation Temperature |
Temperature -10C to +60C,Humidity less than 85%RH |
|
